High-voltage DC contactors: intelligent regulation of power systems

With the increasing demand for electricity in modern society, the reliability and efficiency of power systems have become critical issues. In terms of power transmission and distribution, high-voltage direct current (HVDC) technology has been widely adopted, and high-voltage DC contactor is one of the key components to realize intelligent regulation in HVDC system. In this paper, we will introduce the basic principles and applications of HVDC contactors, as well as their importance in power systems.

Basic Principle of High Voltage DC Contactor

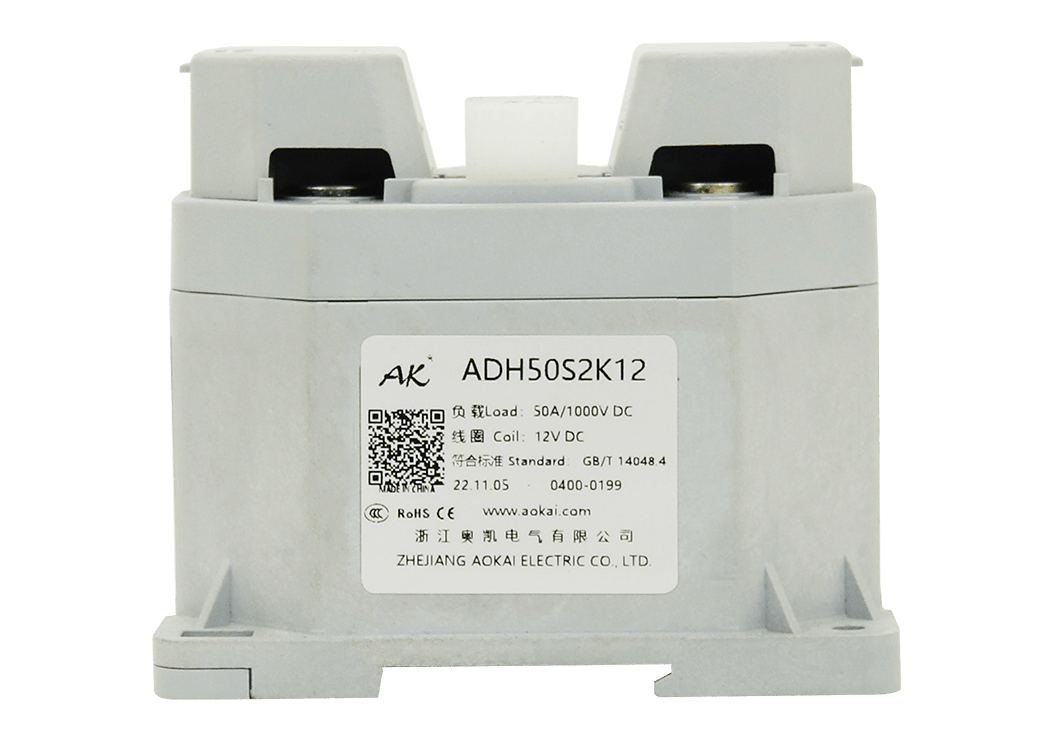

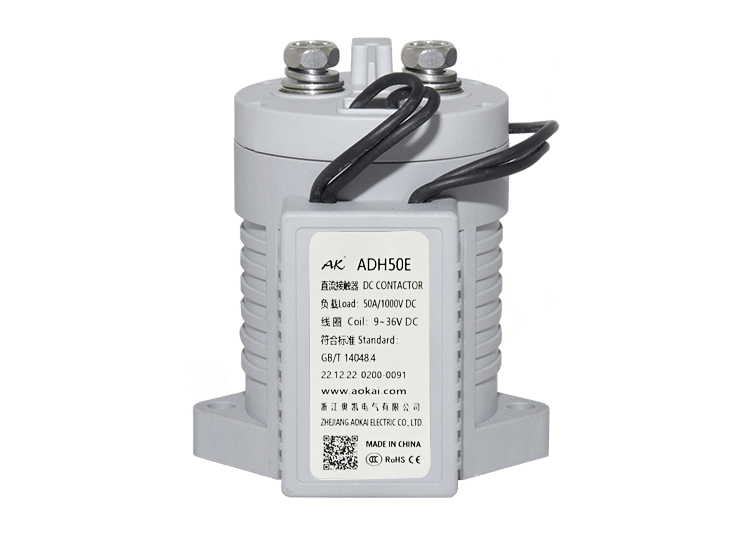

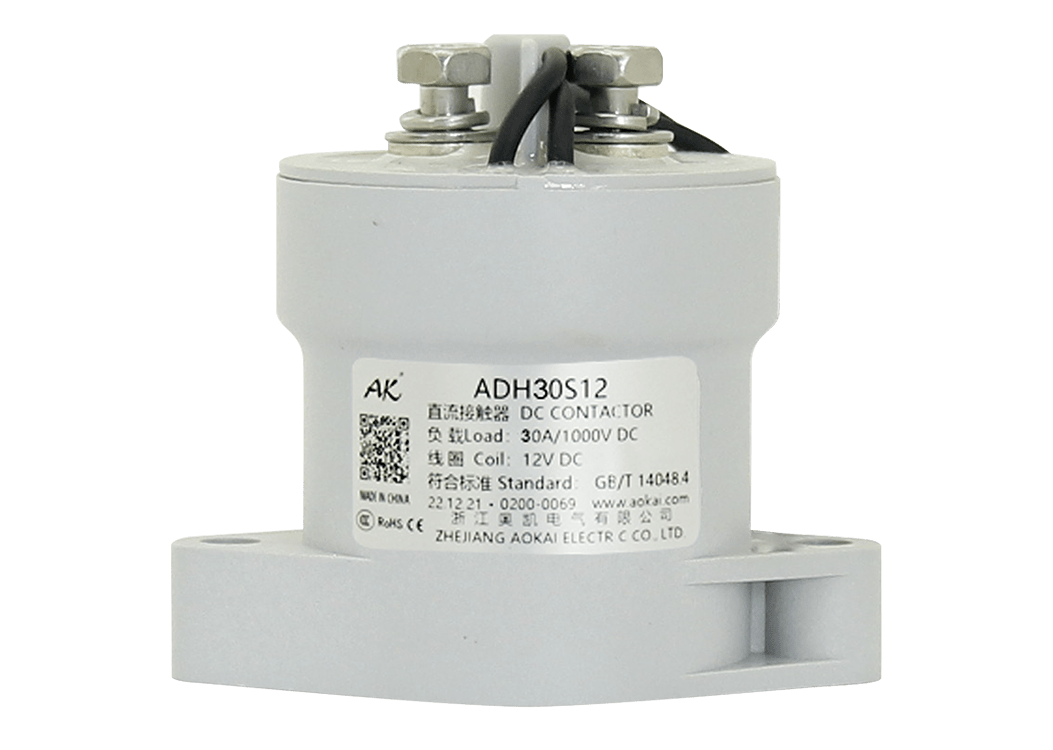

A high voltage DC contactor is a type of switching device used in HVDC systems whose primary function is to perform connecting and breaking operations in high voltage DC circuits. These operations are critical to the stability and controllability of the power system. HVDC contactors typically consist of an electromagnetic coil, contacts, and a control circuit. When the solenoid coil is activated, the contacts close, allowing current to flow through the circuit; when the solenoid coil is de-activated, the contacts open, interrupting the current. This simple yet effective design allows for precise current control and maintenance of HVDC systems.

Areas of application for high voltage DC contactors

High voltage DC contactors are widely used in power systems. Its main application areas include:

Power Transmission: HVDC systems are typically used for long distance power transmission because DC current has less energy loss over long distances. HVDC contactors are used to connect and disconnect transmission lines for control and scheduling of power transmission.

Renewable Energy Integration: As renewable energy sources continue to increase, HVDC systems become a key technology for connecting decentralized renewable energy sources to the power network. HVDC contactors are used to control the flow of power and ensure the efficient integration of renewable energy sources into the grid.

Grid stability: In power systems, HVDC contactors are also used to cope with fault situations. When problems occur in an AC power system, HVDC systems can be used to separate the fault area and prevent the fault from spreading, thus improving the stability of the grid.

Power exchange: While HVDC systems are often used for international power exchange, high voltage DC contactors play an important role in exchanging power between different countries, making power interconnections more efficient and controllable.

Importance of High Voltage DC Contactors

The importance of HVDC contactors in power systems cannot be underestimated. They not only allow precise current control of the power system under varying conditions, but also enhance the stability and reliability of the system.The combination of HVDC technology and HVDC contactors makes the power system more flexible and better adapted to the increasingly complex and diversified power requirements.

In addition, HVDC contactors help improve the energy efficiency of power systems. By reducing losses in the transmission of electrical energy, HVDC systems help to reduce energy waste, lower electricity prices, and minimize negative impacts on the environment.
