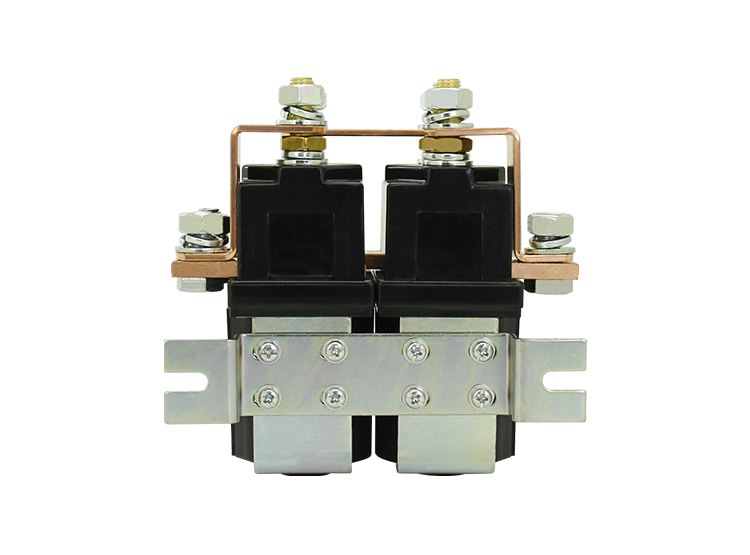

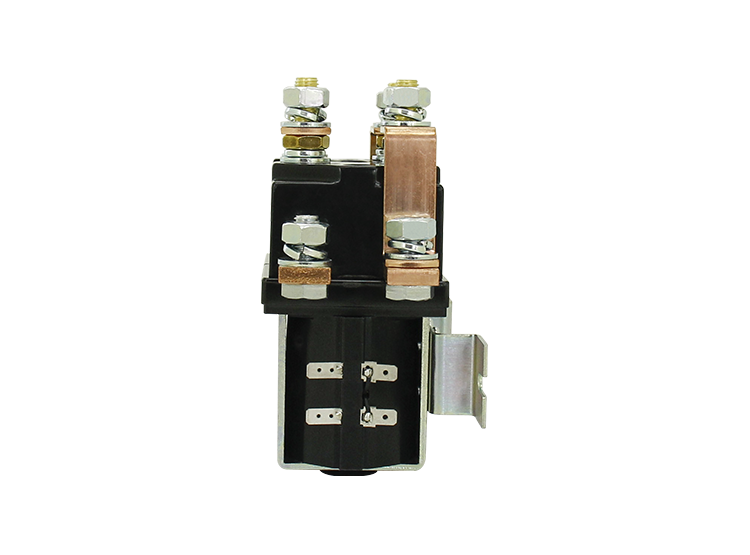

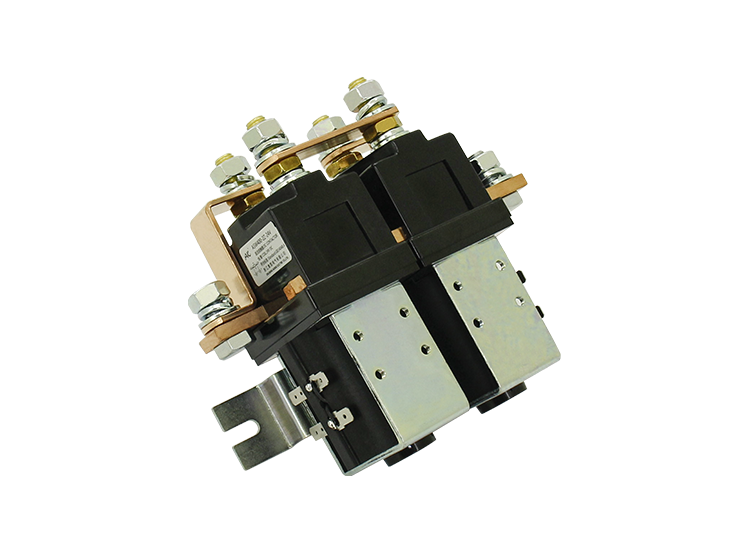

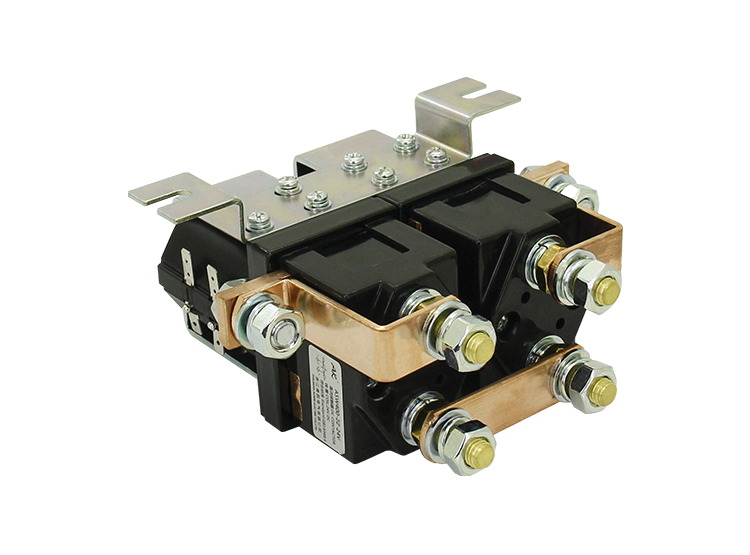

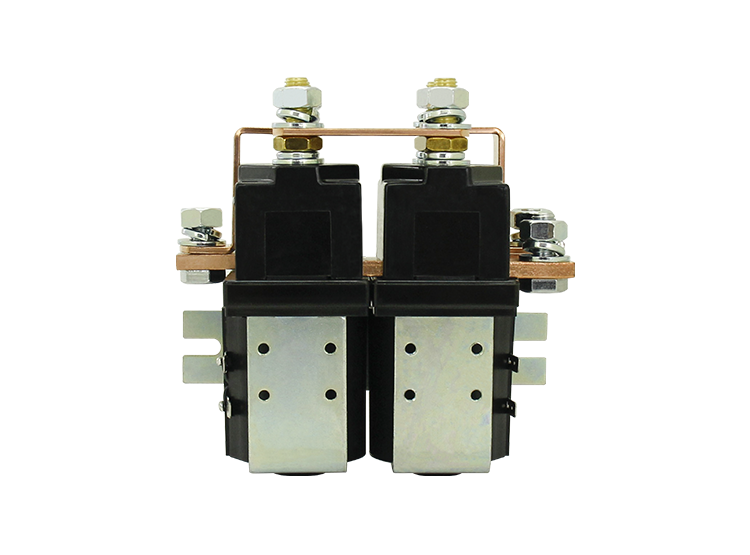

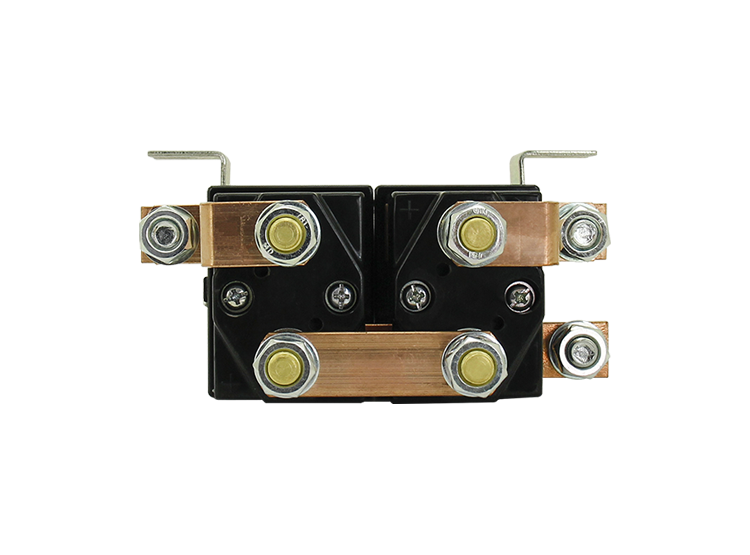

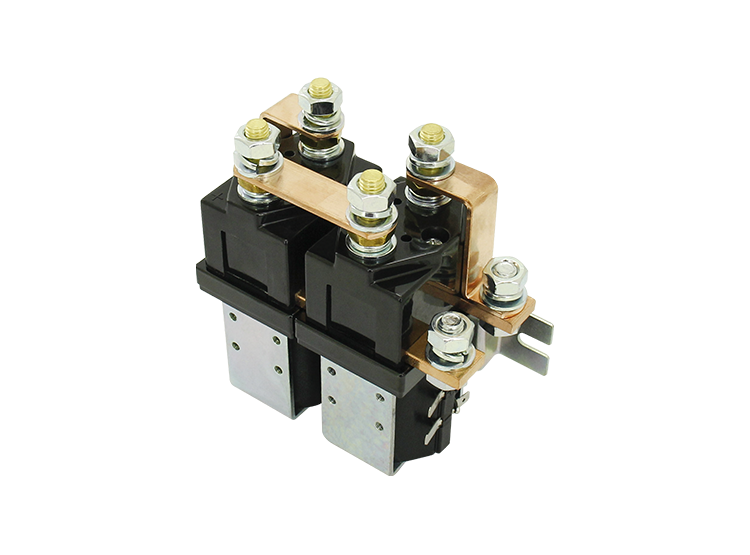

ASW400S2Z DC Contactor-Aokai Electric

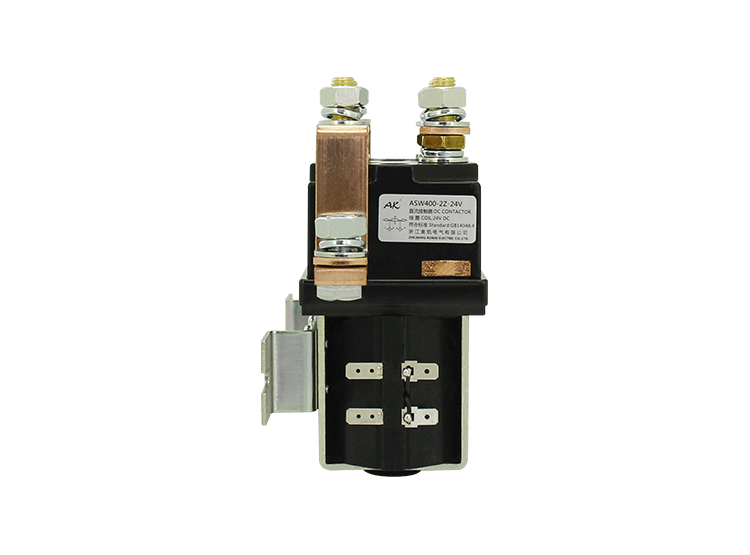

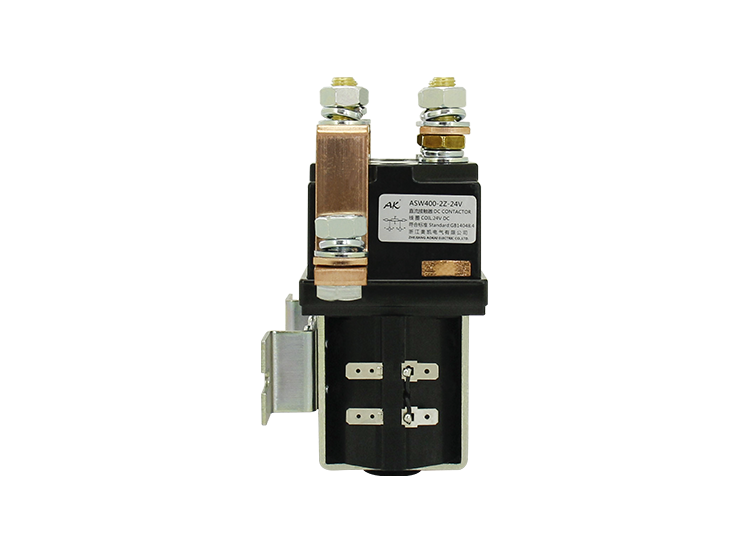

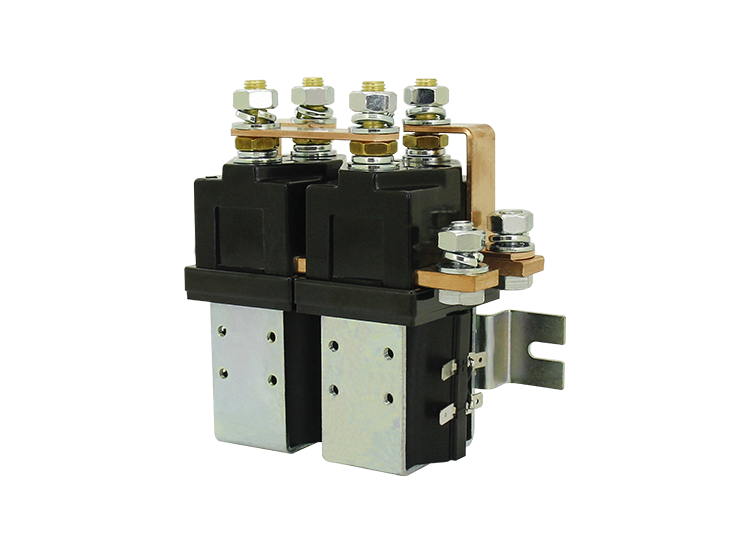

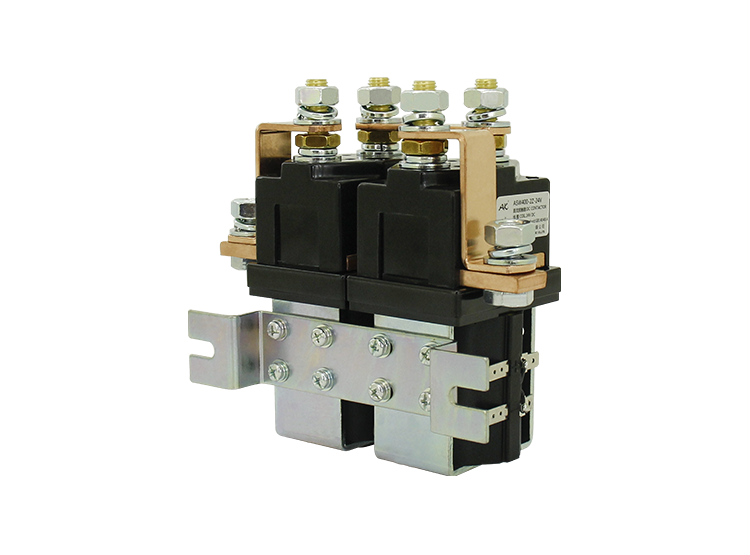

ASW400S2Z

DC Contactor

Features

1、Continuous 400A load.

2、It has two sets of normally open and two sets of normally closed contacts.

3、Coil power consumption ≤20W.

4、The insulation resistance reaches 100MΩ (1000VDC), and the withstand voltage between the contacts and the coil is 1kV.

5、IP protection level: IP40.

6、Compliant with IEC 60664-1, GB/T14048.1 and GB/T14048.4 requirements.

7、Compliant with RoHS (2015/863/EC) and REACH (1907/2006/EC) requirements.

8、Safety certificate: CE, RoHS.

Application Areas

50A-2000A, 12-110VDC, the main contact form has one group and two groups of normally open, one group and two groups of normally closed, one group and two groups of conversion, very flexible installation, low power consumption, low heat, non-stick, long life, reliable contact, can be with auxiliary contacts. Applied in inverter, 5G communication power supply, electric forklift, engineering vehicle, charger, AGV, battery pack field;

Product Certification

- Complies with RoHs (2002/95/EC);

Online Inquiry PDF Download Order Now

Performance Parameters（at23℃）

Contact Arrangement	2K (2NO), 2B (2NC)	Pickup Voltage		≤70%Us
Contact Resistance	≤0.5mΩ	Dropout Voltage		≥10%Us
Contact Voltage Drop	≤80mV(at 400A)	Pickup Time		≤30ms
Overload Current	≤7le,≯1s	Dropout Time		≤30ms
Temperature	-40℃~65℃	Dielectric Strength	Between Main Contacts	50Hz/60Hz 1000VAC/1min
Load Terminal	M10 External Thread	Dielectric Strength	Between Main Contacts and Coil	50Hz/60Hz 1000VAC/1min
Vibration	3.5g,10~200Hz,1/2 Sine Wave (Power On)	Insulation Resistance	Initial State	100MΩ 1min
Relative Humidity	20％~90％RH	Insulation Resistance	After Electrical Life	50MΩ 1min
Dimension	160.5x72x153mm	Vibration		(10-200)Hz、Acceleration<3.5g
Operating Duty	Continuous	Shock		(60-100)times/min, Acceleration≤4g
Electrical Durability with Load (Resistive) a	≥6000 time	Mechanical Durability		≥100000 time
Load Wiring Torque	10-13N.m	Coil Wiring		6.3x0.8 Spade Terminal

ASW400S2Z Coil Parameter

Coil Voltage	Pickup Voltage VDC	Dropout Voltage VDC	Holding Current	Coil Power Consumption
12V	≤70%Us	≥10%Us	≤1.5A	＜20W
24V	≤70%Us	≥10%Us	≤0.7A	＜20W
36V	≤70%Us	≥10%Us	≤0.5A	＜20W
48V	≤70%Us	≥10%Us	≤0.35A	＜20W
60V	≤70%Us	≥10%Us	≤0.3A	＜20W
72V	≤70%Us	≥10%Us	≤0.25A	＜20W

Model Coding

Outline Installation Dimension Drawing

ASW400S2Z

ASW400S2ZFS

Wiring Diagram

Usage Cautions

1、 This document is only for customer selection reference, AOKAI has tried the best to ensure the accuracy of the information in this document. Product specifications and parameters may be changed due to product improvement etc., they may be inconsistent because of not updated in time. For the specific parameters and performance of each product, please refer to the samples provided by AOKAI and the corresponding signed and controlled specification.

2、 Regarding the application of this product, please select the matching product according to your specific use conditions and environmental requirements when selecting the product. If the requirements are not clearly specified, please contact AOKAI to obtain more technical support.

3、 When installing and using this product, regardless of wiring or fixed installation, it is required to use anti-loose spring washers.

4、 The torque for installing fasteners should be within the standard range required by this specification. It may cause the unstable installation or damaging the product if the torque is lower than the minimum torque or higher than the maximum torque.

5、 Do not install the contactor in places with strong magnetic fields (such as transformers or strong magnets), or close to objects with thermal radiation. It is recommended to use it with a cooling fan.

6、 It is forbidden to use the product that have been dropped from a high place (height≥30cm).

7、 The driving power of the product coil must be bigger than or equal to the coil power of the product, otherwise the product switching ability will be reduced.

8、 When the coil is continuously energized, the coil voltage cannot exceed the maximum allowable voltage, otherwise the abnormal heating of the coil will affect its service life.

9、 This product is not waterproof. Please do not use it in an environment where water, solvent, or oil may come into contact with the casing or terminals. Otherwise, the aging of the casing or corrosion of the terminals may cause abnormal heating.

10、It is forbidden to use the product beyond the rated electrical life. When the rated electrical life is reached, although the product can continue to work, there is a risk of failure, explosion, and burning because of non-breaking.

11、This product cannot be used as a protector, and the circuit must be connected with a protector in series when using.

12、AOKAI only does the resistive electrical life verification and quality assurance. When the product is used in an environment with inductive load or capacitive load, it is recommended that the circuit should be connected in parallel with a surge protection device.

13、After continuous work, restarting immediately after disconnection will affect the pull-in voltage because the product is in a hot state, and the pull-in voltage will increase, which is a reasonable phenomenon.

14、It is strictly prohibited to wiring when power on.
