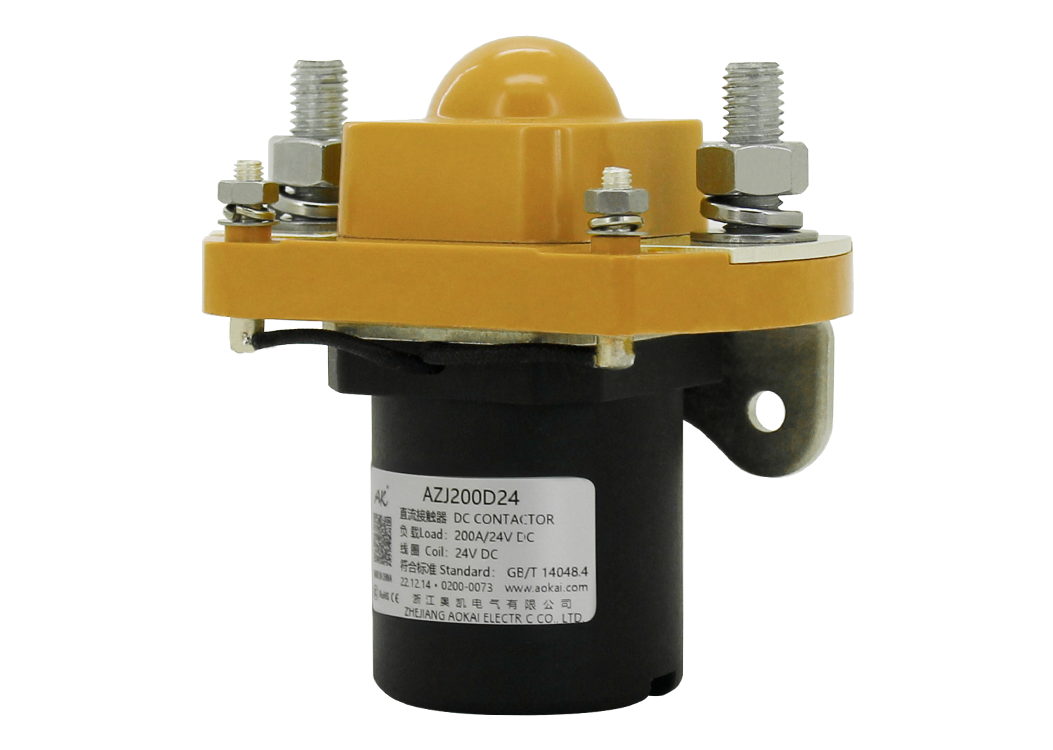

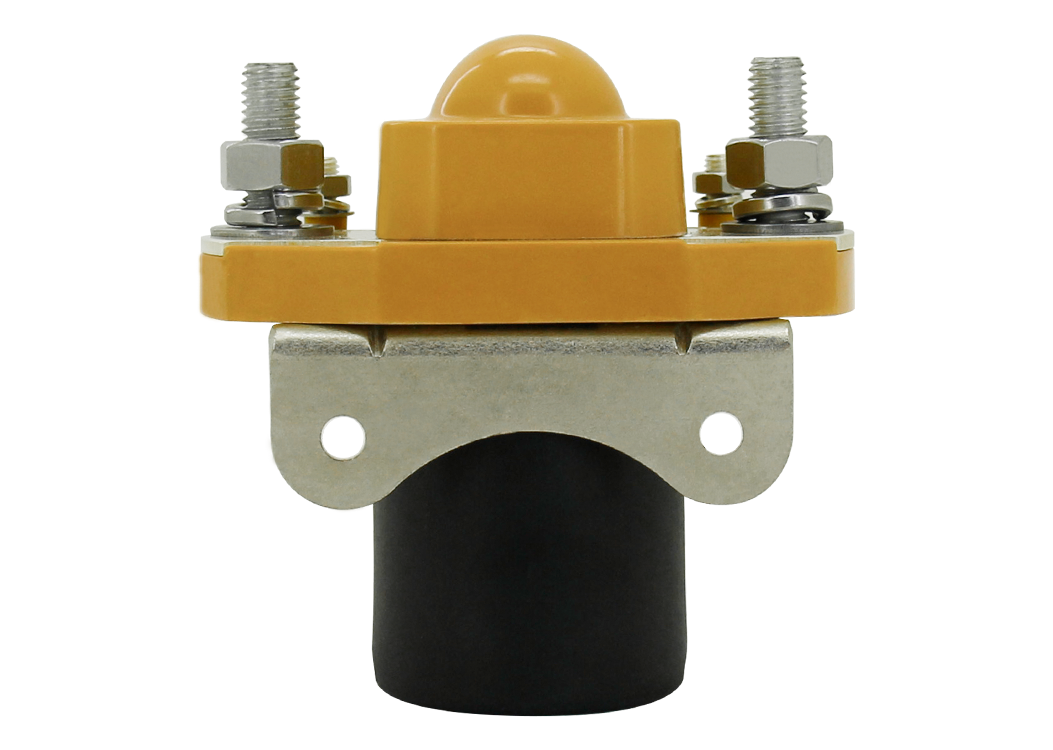

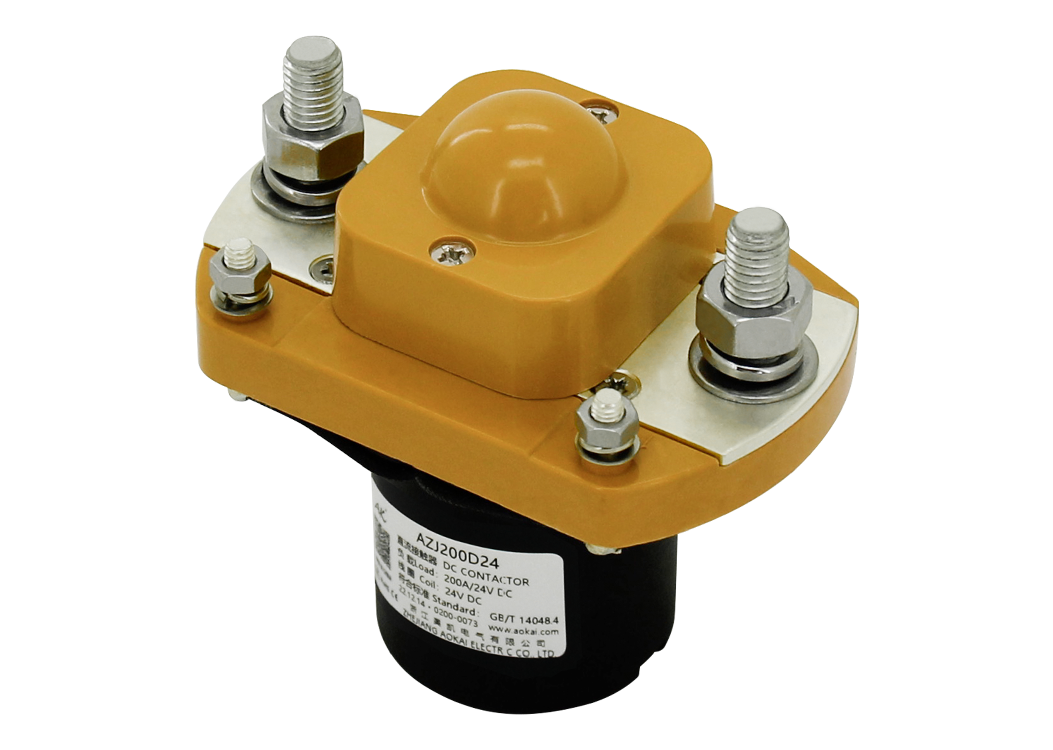

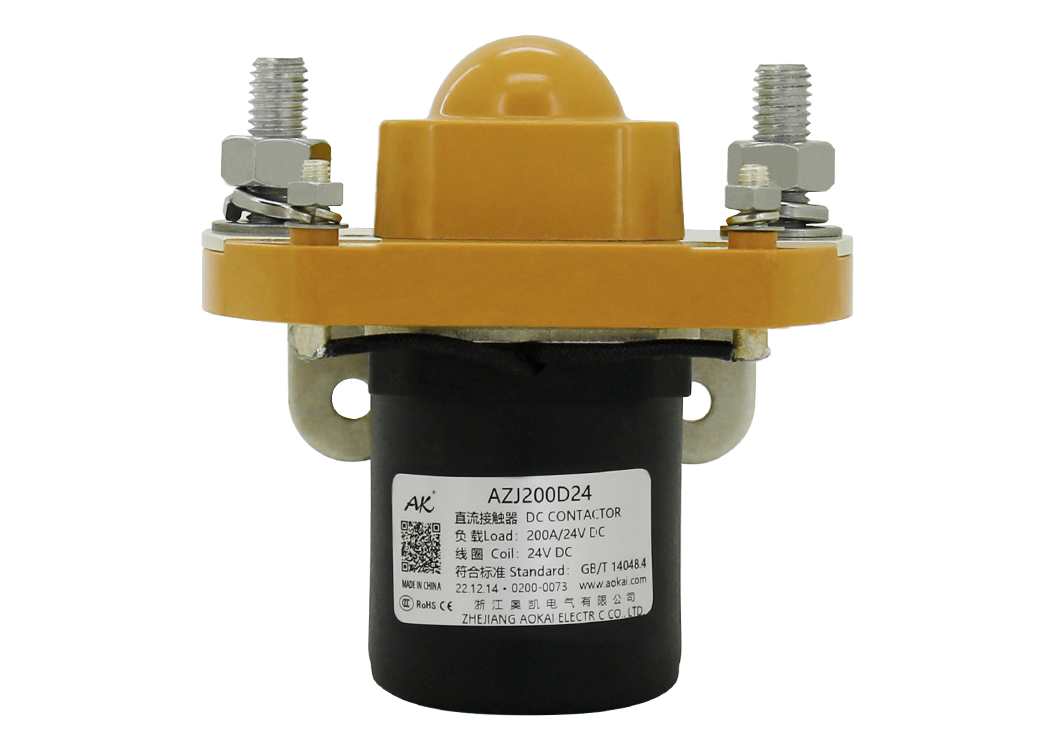

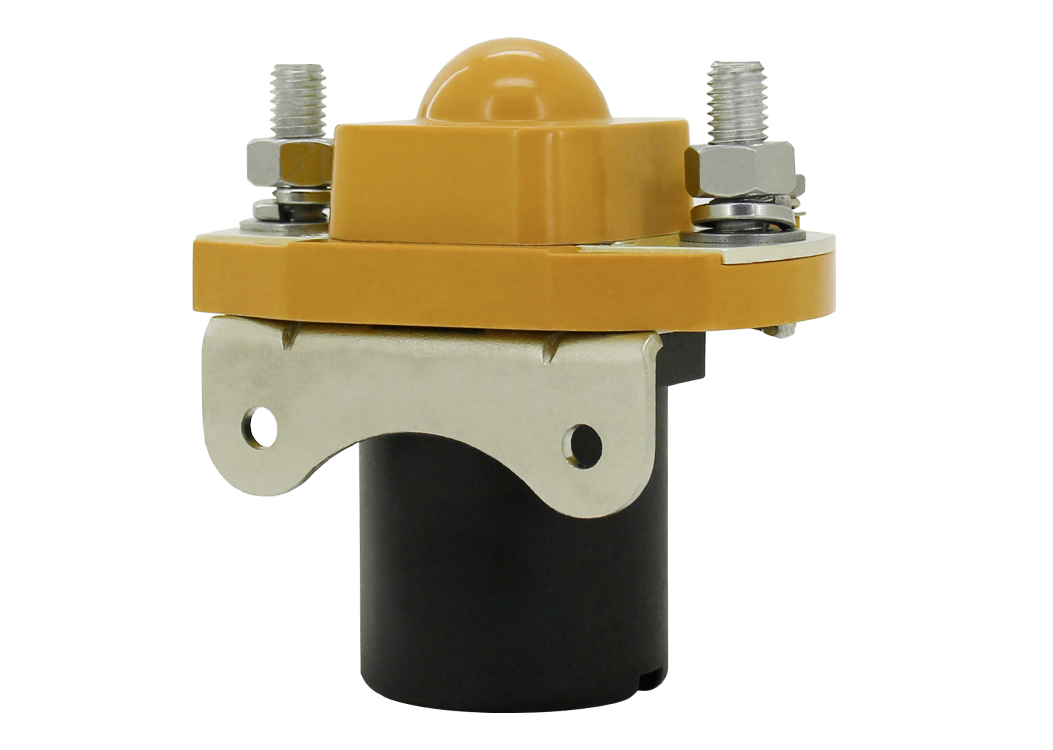

Features
1、Continuous 200A load.
2、It has one set of normally open contacts
3、Coil power consumption ≤9W.
4、The insulation resistance reaches 100MΩ (1000VDC), and the withstand voltage between the contacts and the coil is 3.5kV.
5、IP protection level: IP50.
6、Compliant with IEC 60664-1, GB/T14048.1 and GB/T14048.4 requirements.
7、Compliant with RoHS (2015/863/EC) and REACH (1907/2006/EC) requirements.
8、Safety certificate: CE, CCC, RoHS.
50A-1000A, 12-72VDC, low power consumption, fast heat dissipation, non-stick, long life, reliable contact, can be with auxiliary contacts. Applied in inverter, 5G communication power supply, electric forklift, engineering vehicle, charger, AGV, battery pack field;
· Complies with RoHs (2002/95/EC);
Performance Parameters（at23℃）
Contact Arrangement | 1K（1NO） | Pickup Voltage | ≤70%Us | |
Contact Resistance | ≤0.5mΩ | Dropout Voltage | 5%-40%Us | |
Contact Voltage Drop | ≤80mV(at 200A) | Contact Bounce Period | ≤5ms | |
Overload Current | ≤7le,≯1s | Pickup Time | ≤30ms | |
Temperature | -40℃~85℃ | Dropout Time | ≤30ms | |
Load Terminal | M8 External Thread | Dielectric Strength | Between Main Contacts | 50Hz/60Hz 1500VAC/1min |
Vibration | 3.5g, 10~200Hz, 1/2 Sine Wave (Power On) | Between Main Contacts and Coil | 50Hz/60Hz 1500VAC/1min | |
Relative Humidity | 5％~95％RH | Insulation Resistance | Initial State | 100MΩ 1min |
Dimension | 85mm*56mm*86mm | After Electrical Life | 50MΩ 1min | |
Operating Duty | Continuous | Shock | Stability | 2.5g (Power On) |
Electrical Durability with Load (Resistive) | ≥20,000 Times | Strength | 5g | |
Load Wiring Torque | 6-10N.m | Mechanical Durability | ≥100,000 Times | |
/ | / | Coil Wiring Torque | 1.2-2.0N.m | |
AZJ200S Coil Parameters
Coil Voltage | Pickup Voltage | Dropout Voltage | Coil Resistance | Coil Power Consumption |
12V | ≤70%Us | 5%-40%Us | 16Ω±10% | 9W±10% |
24V | ≤70%Us | 5%-40%Us | 63Ω±10% | 9W±10% |
36V | ≤70%Us | 5%-40%Us | 144Ω±10% | 9W±10% |
48V | ≤70%Us | 5%-40%Us | 256Ω±10% | 9W±10% |
60V | ≤70%Us | 5%-40%Us | 400Ω±10% | 9W±10% |
72V | ≤70%Us | 5%-40%Us | 576Ω±10% | 9W±10% |
AZJ200D Coil Parameters
Coil Voltage | Pickup Voltage | Dropout Voltage | Coil Resistance | Starting Power | Holding Power | |
| Starting | Holding | |||||
12V | ≤70%Us | 5%-40%Us | 2.0Ω±10% | 48Ω±10% | 72W±10% | 4W±10% |
24V | ≤70%Us | 5%-40%Us | 7.5Ω±10% | 190Ω±10% | 72W±10% | 4W±10% |
36V | ≤70%Us | 5%-40%Us | 17.5Ω±10% | 430Ω±10% | 72W±10% | 4W±10% |
48V | ≤70%Us | 5%-40%Us | 31Ω±10% | 768Ω±10% | 72W±10% | 4W±10% |
60V | ≤70%Us | 5%-40%Us | 48Ω±10% | 1200Ω±10% | 72W±10% | 4W±10% |
72V | ≤70%Us | 5%-40%Us | 68Ω±10% | 1500Ω±10% | 72W±10% | 4W±10% |
Model Coding
Outline Installation Dimension Drawing
Without Auxiliary Switch
With Auxiliary Switch
Wiring Diagram
Product Packaging Specifications
Product Model | Packaging | Min. QTY of Inner Packaging | Carton Size (LxWxH cm) | Net Weight/PCS (Max.) g | Total QTY (pcs) | Net Weight (Max.) kg | Gross Weight (Max.) kg |
AZJ200D | Pearl Cotton+Carton | 20 PCS/Layer | 56x38.5x21 | 520 | 40 | 20.8 | 21.9 |
Note:
1、Multiple typical packaging specifications for each product category are only listed as examples for reference.
2、The actual weight of the packaging may fluctuate with environmental temperature and humidity. For specific batch weights, please contact your dedicated sales representative.
Usage Cautions
1、This document is only for customer selection reference, AOKAI has tried the best to ensure the accuracy of the information in this document. Product specifications and parameters may be changed due to product improvement etc., they may be inconsistent because of not updated in time. For the specific parameters and performance of each product, please refer to the samples provided by AOKAI and the corresponding signed and controlled specification.
2、Regarding the application of this product, please select the matching product according to your specific use conditions and environmental requirements when selecting the product. If the requirements are not clearly specified, please contact AOKAI to obtain more technical support.
3、When installing and using this product, regardless of wiring or fixed installation, it is required to use anti-loose spring washers.
4、The torque for installing fasteners should be within the standard range required by this specification. It may cause the unstable installation or damaging the product if the torque is lower than the minimum torque or higher than the maximum torque.
5、Do not install the contactor in places with strong magnetic fields (such as transformers or strong magnets), or close to objects with thermal radiation. It is recommended to use it with a cooling fan.
6、It is forbidden to use the product that have been dropped from a high place (height≥30cm).
7、It is forbidden to use the product in an environment with oil pollution, especially before wiring, it will seriously affect the main terminals conductivity if they are polluted by oil pollution, and affect the product life.
8、It is forbidden to use the product beyond the rated electrical life. When the rated electrical life is reached, although the product can continue to work, there is a risk of failure, explosion, and burning because of non-breaking.
9、This product cannot be used as a protector, and the circuit must be connected with a protector in series when using.
10、AOKAI only does the resistive electrical life verification and quality assurance. When the product is used in an environment with inductive load or capacitive load, it is recommended that the circuit should be connected in parallel with a surge protection device.
11、After continuous work, restarting immediately after disconnection will affect the pull-in voltage because the product is in a hot state, and the pull-in voltage will increase, which is a reasonable phenomenon.
12、It is strictly prohibited to wiring when power on.
